PowerSyntax 90 degree Powerlock compatible cable connector

Vertical PowerSyntax

The easiest way to save space

Vertical PowerSyntax

The easiest way to save space

A new addition to the PowerSyntax family, a 90 degrees angled single pole cable connector, designed and built with great attention to every detail, like we always do. Source and drain versions available, for high currents up to 480amp or 750amp.

Bending the rules
of connection
Bending the rules
of connection

New 90 degree angled PowerSyntax cable connector
New 90 degree angled PowerSyntax cable connector

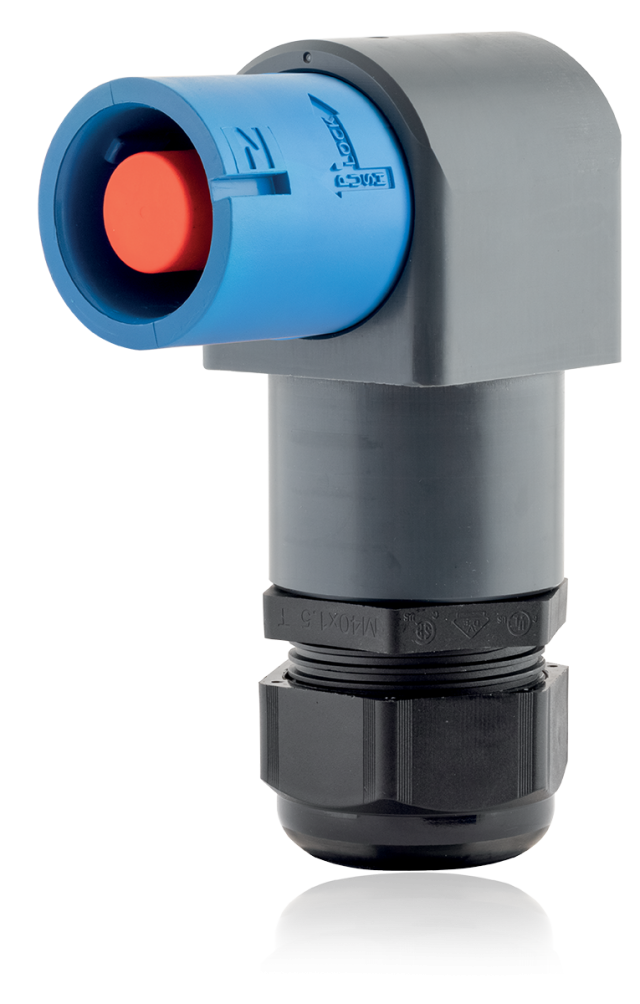

A new way to imagine single pole cable connectors, the newVertical PowerSyntax is the ideal solution when space saving is key. Vertical is a right-angled cable connector, fitted with a M10 threaded hole contact for currents up to 480 or 750 amp. IP2X protection through patented drain contact lock.Secondary locking safety system. M40 cable glands, available with 3 different clamping range options. Permanent phase identification and safety information markings engraved on connector’s body. No stickers applied. Drain and Source versions available.

Contact us for more information and ordering details.

Every version you may need
Every version
you may need

The many faces of our new Vertical PowerSyntax
The many faces of our new Vertical PowerSyntax

Our Vertical PowerSyntax, the right-angled single pole cable connector, is available in source and drain versions and in all standard regional pole/color combinations. It is designed to carry high currents up to 480amp or 750amp.

Vertical PowerSyntax

Source

Vertical PowerSyntax

Drain

Identification color codes
Identification color codes

Available in all regional conductor/color combinations
Available in all regional conductor/color combinations

Ground Neutral Line 1 Line 2 Line 3
Europe & UK
UK (old)
Australia
U.S.A.

Overall dimensions
Overall dimensions

Vertical PowerSyntax drain version
Vertical PowerSyntax drain version

Side view | Front view
Side view | Front view

Dimensions in mm

Vertical PowerSyntax source version
Vertical PowerSyntax source version

Side view | Front view
Side view | Front view

Dimensions in mm

M10 threaded post
M10 threaded post

Standard contact for the Vertical PowerSyntax
Standard contact for the Vertical PowerSyntax

M10 threaded-post contact, up to 480 amp or 750 amp (all-copper contact). Lug terminal retained through M10 nut.

Lug compatibility chart
Lug compatibility chart

Choose the right lug terminal
Choose the right lug terminal

Lug Type B Cable section (flex) ∅i d ∅ screw
C 19,0 95 - 120 mm² 15,2 10 mm
C 19,0 120 - 150 mm² 16,7 10 mm
C 24,5 150 - 185 mm² 19,2 10 mm
C 31,0 240 mm² 21,1 10 mm

New threaded IP2X protection
New threaded IP2X protection

For source contacts
For source contacts

Thanks to this new design, a portion of the source contact's insulating cap will remain in its position on top of the source contact even in case of damage, improving the overall safety for the user.

More info

Drain contact
IP2X safety lock
Drain contact
IP2X safety lock

Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !
Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

Discover more

The best connectors
deserve the best accessories.
The best connectors
deserve the best accessories.

Discover how to make a great product even better
Discover how to make a great product even better

SyntaxLock
SyntaxLock

Patent pending
Patent pending

Suitable for all PowerSyntax connectors. Can be fitted or removed at any time. A simple, universal accessory. Quick and easy to install.

All information about SyntaxLock

Protection caps IP67
Protection caps IP67

For IP67 waterproof protection
For IP67 waterproof protection

The PowerSyntax IP67 caps ensure complete waterproof protection and IP53 caps are a fast, easy way to protect connectors.

Discover more about protection caps
