PowerSyntax 45 degree Powerlock compatible panel connector

PowerSyntax 45

Finally a way to take some weight off your panels

PowerSyntax 45

Finally a way to take some weight off your panels

Single pole 45 degree panel connectors, available in Chain Pilot  or Basic variants, for currents up to 480amp or 750amp.

  • Give your connections
    a whole new angle

    Give your connections
    a whole new angle

    New 45 degree angled PowerSyntax panel connector

    New 45 degree angled PowerSyntax panel connector

    Our PowerSyntax 45 is designed to provide new options for your operations and the way you manage single pole, Powerlock compatible, panel-mount connections. Thanks to its versatile design it is an ideal combo with our patented Chain Pilot models and with our Basic panel connectors as a further option. PowerSyntax 45 is available for high currents up to 480amp or 750amp, Source and Drain versions.

     PowerSyntax 45 degree single pole panel connector


  • Simulation of a PowerSyntax 45 mounted on a non-conductive panel - The insulating plastic ring may not be installed

  • We pay attention
    to the smallest details

    We pay attention
    to the smallest details

    Every element of PowerSyntax 45 has been thoughtfully designed

    Every element of PowerSyntax 45 has been thoughtfully designed

     45° angled european single pole panel PowerSyntax

  • Our special
    stainless steel screws

    Our special
    stainless steel screws

    Extra grip on plastic materials

    Extra grip on plastic materials

    Made with A2 stainless steel, with pan heads and 6 lobe recess, the screws we provide with our PowerSyntax 45 have a 30° thread angle and are perfectly suited for plastic materials, giving the whole structure a great resistance to traction.

     Our special stainless steel screws
  • Source connector stainless steel screws for plastic
  • Knurled brass threaded inserts

    Knurled brass threaded inserts

    Knurled brass threaded inserts

    Providing secure fixing to panels

    Providing secure fixing to panels

    The PowerSyntax 45 is attached to panels through special brass threaded inserts. Their knurled bands on the outside will grip the plastic of the base element as the screws are tightened into the insert.

    Compatible screws: Stainless steel - ISO 7380-1 - Metric M5 - 3mm Hex socket - Button head screw - Head height 2.75mm - Head diameter 9.5mm.
    Thread lengths, depending on the thickness of the panel:
    - 16mm (panel thickness 0-5mm)
    - 20mm (panel thickness 5-10mm)

  • A masterpiece of design and manufacture

    A masterpiece of design
    and manufacture

    The 45° element is made to fit the PowerSyntax Chain Pilot like a glove

    The 45° element is made to fit the
    PowerSyntax Chain Pilot like a glove
  • Front view

    Front view

    Front view

    45° base element

    45° base element
  • Rear view

    Rear view

    Rear view

    45° base element

    45° base element

  • Essential when mounting
    PowerSyntax 45 on metal panels

    Essential when mounting
    PowerSyntax 45 on metal panels

    Insulating plastic ring

    Insulating plastic ring

    Essential when mounting PowerSyntax 45 on metal panels

    Being safety always our first priority, we designed an extra protection, necessary when installing our PowerSyntax 45 on metal or conductive panels. This plastic ring, placed on the back of the panel, helps preventing any possible contact between the lug and the panel itself.

    Caution: on metal panels the cut-out diameter is 48mm.

  • A great addition
    to the Chain Pilot family

    A great addition
    to the Chain Pilot family

    This version of the panel-mount PowerSyntax connectors has a built-in pilot microswitch.

    This version of the panel-mount PowerSyntax connectors has a built-in pilot microswitch.

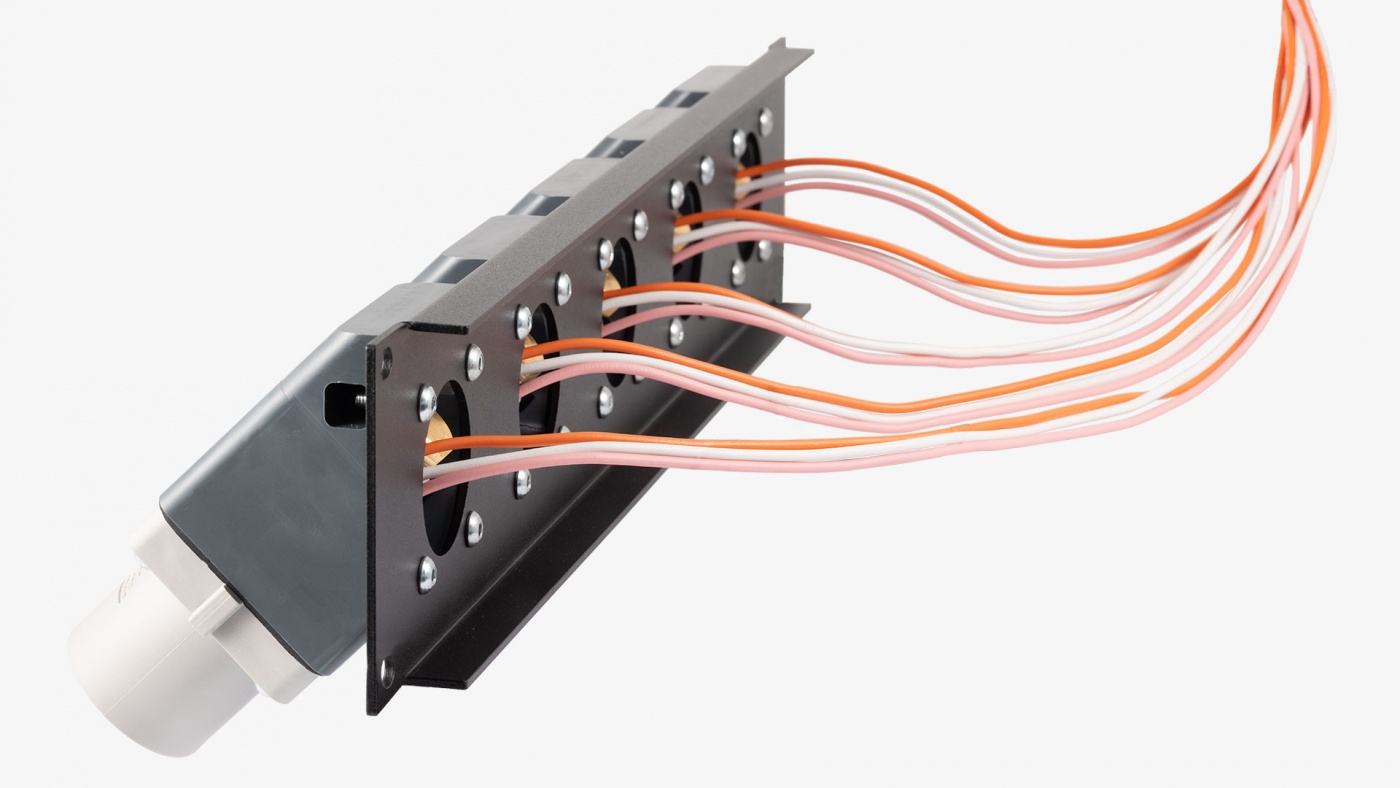

    The Chain Pilot has been designed to obtain protective electrical interlocking (or additional controls) through a chain of simultaneously operating connectors (see circuit diagrams in the product page). The electrically interlocked connectors will all de-energise should one become disconnected when in use, making it impossible that any connector is removed under load. Drain and Source versions available, for high currents up to 480amp or up to 750amp.

     PowerSyntax Chain Pilot microswitch controlled panel connector, Powerlock compatible
    Discover more about Chain Pilot
  • PowerSyntax 90 degrees single pole powerlock panel

    Need a different angle?

    Need a different angle?

    Meet PowerSyntax 45's brother:
    PowerSyntax 90

    Meet PowerSyntax 45's brother: PowerSyntax 90

    Available in Chain Pilot or Basic variants, for high currents
    up to 480amp or 750amp, Source and Drain versions.

    Discover more

  • Overall dimensions

    Overall dimensions
  • Panel drain

    Panel drain

    Panel drain

    Side view

    Side view

    Dimensions in mm
  • Panel source

    Panel source

    Panel source

    Side view

    Side view

    Dimensions in mm

  • Panel mount cut-out dimensions

    Panel mount cut-out dimensions
  • Panel cut-out drain/source

    Panel cut-out drain/source

    Panel cut-out drain/source

    For non-conductive panels

    For non-conductive panels

    Dimensions in mm
  • Panel cut-out drain/source

    Panel cut-out drain/source

    Panel cut-out drain/source

    For metal or conductive panels
    and insulating plastic ring

    For metal or conductive panels
    and insulating plastic ring

    Dimensions in mm
  • PowerSyntax 45 panel connectors PowerSyntax 45 panel connectors

  • M12 threaded hole

    M12 threaded hole

    Standard contact for the PowerSyntax 45

    Standard contact for the PowerSyntax 45

    M12 threaded-hole contact, up to 480 amp or 750 amp (all-copper contact). Lug terminal retained through M12 bolt.

    M12 threaded hole
  • Lug compatibility chart

    Lug compatibility chart

    Lug compatibility chart

    Choose the right lug terminal

    Choose the right lug terminal

    Lug TypeBCable section (flex)∅id ∅ screw
    S25,070 - 95 mm213,512 mm
    S28,595 - 120 mm215,212 mm
    S31,5120 - 150 mm216,712 mm
    S35,5150 - 185 mm219,212 mm
    S39,0240 mm221,112 mm
    C31,0240 mm221,112 mm
    C31,0300 mm223,712 mm
  • New threaded IP2X protection

    New threaded IP2X protection

    New threaded IP2X protection

    For source contacts

    For source contacts

    Thanks to this new design, a portion of the source contact's insulating cap will remain in its position on top of the source contact even in case of damage, improving the overall safety for the user.

    More info

  • Drain contact
    IP2X safety lock

    Drain contact
    IP2X safety lock

  • Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

    Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

    Discover more
  • Powerlock M12 thereaded hole connections Powerlock M12 thereaded hole connections

  • The best connectors
    deserve the best accessories.

    The best connectors
    deserve the best accessories.

    Discover how to make a great product even better

    Discover how to make a great product even better
  • SyntaxLock

    SyntaxLock

    SyntaxLock

    Patent pending

    Patent pending

    Suitable for all PowerSyntax connectors. Can be fitted or removed at any time. A simple, universal accessory. Quick and easy to install.

    All information about SyntaxLock
  • Protection caps IP67

    Protection caps IP67

    Protection caps IP67

    For IP67 waterproof protection

    For IP67 waterproof protection

    The PowerSyntax IP67 caps ensure complete waterproof protection and IP53 caps are a fast, easy way to protect connectors.

    Discover more about protection caps
